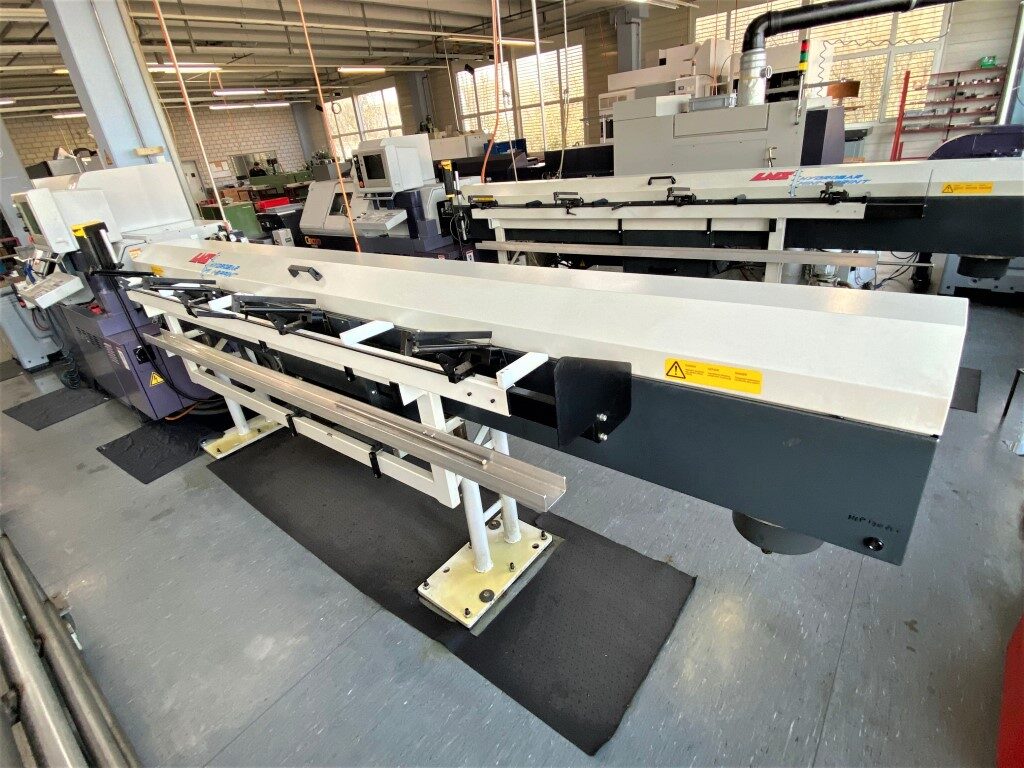

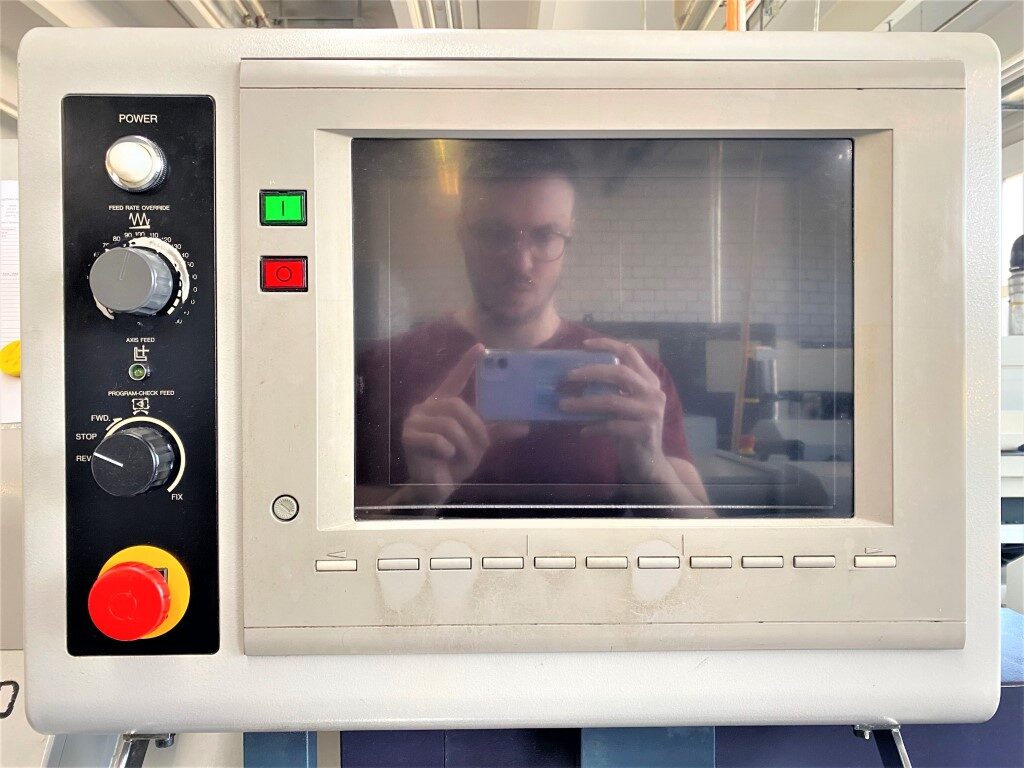

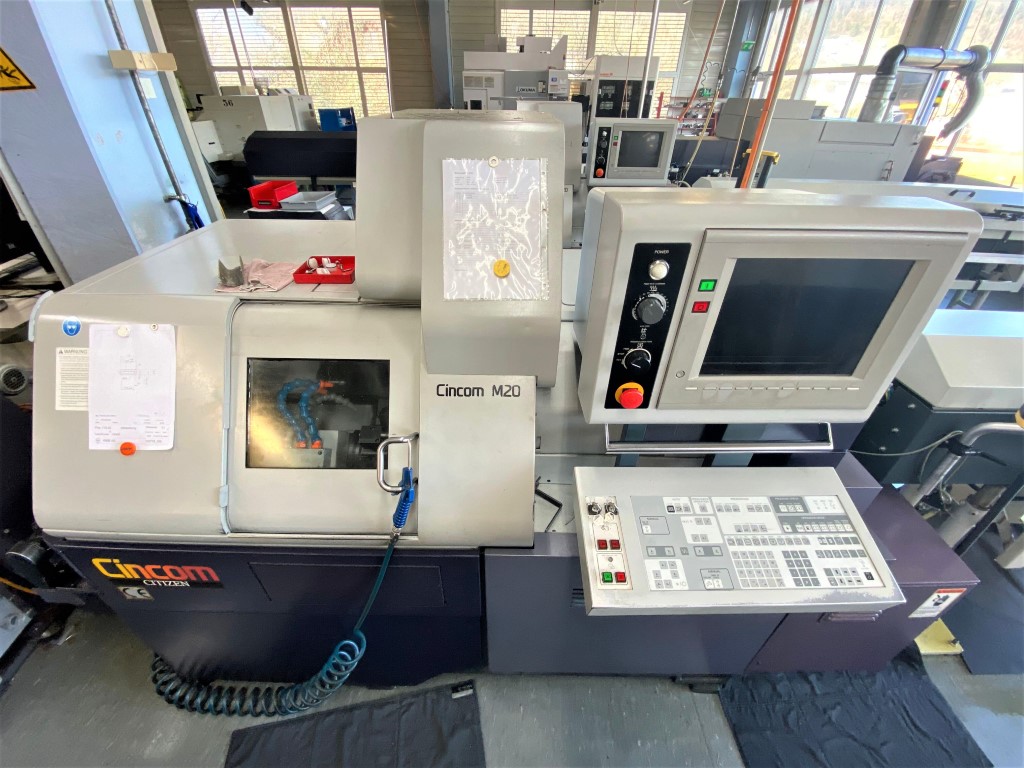

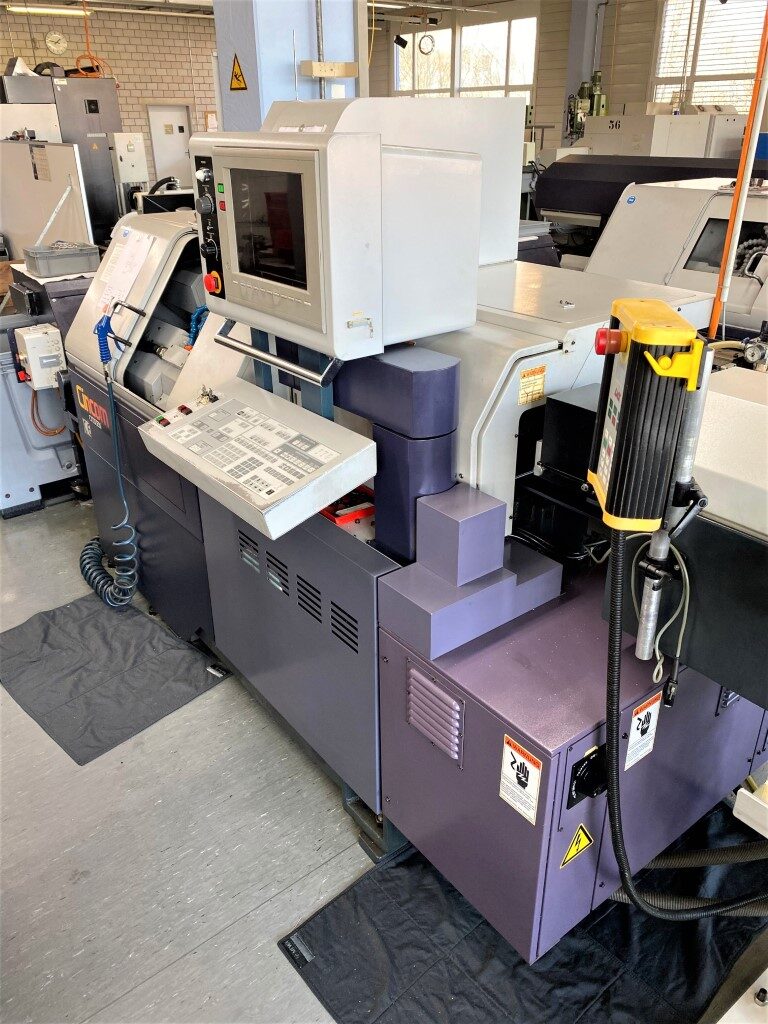

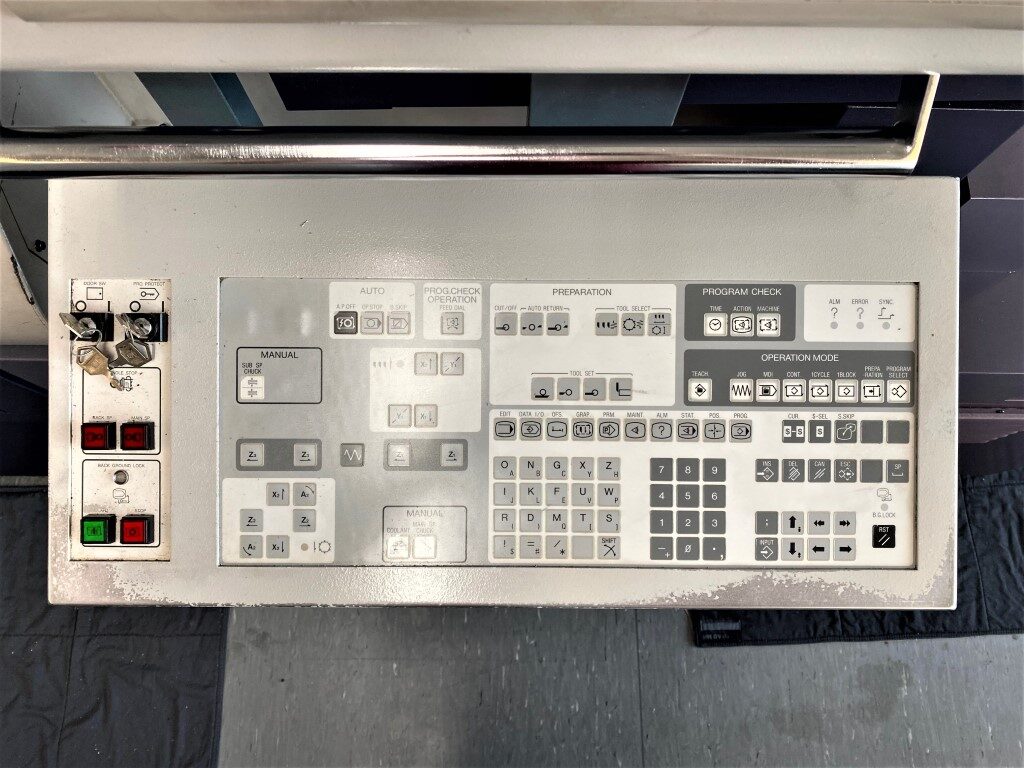

Technische Daten

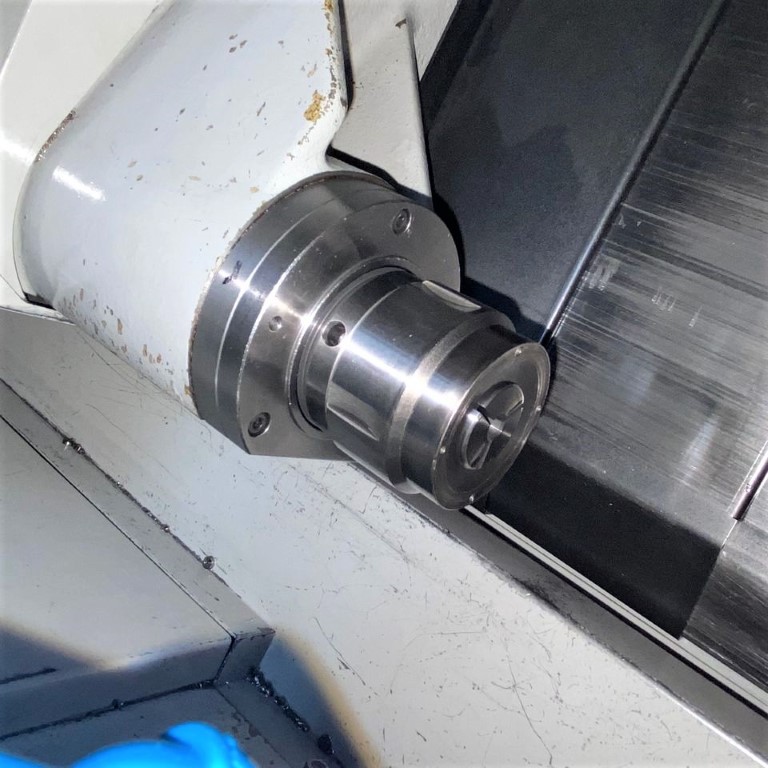

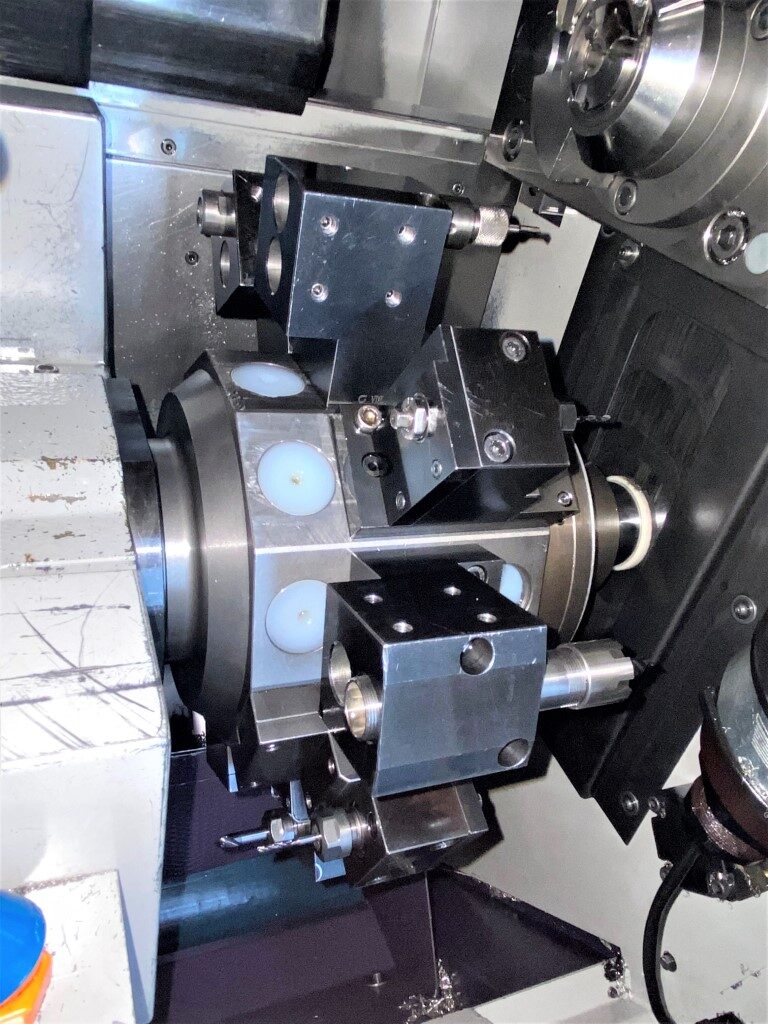

| Max. Machining Diameter: | 20 mm | ||
| Max. Machining Length: | 320 mm / chuck | ||
| Max. Drilling Diameter: | 10 mm | ||
| Max. Tapping Diameter: | M8 | ||
| Through-hole Diameters: | 24 mm 21 mm | ||
| Spindle Speed: | 200 – 8100 rpm | ||
| Spindle Speed Change Steps: | Steepless, S4-Digit | ||
| Rotary Tool Max. Drilling Diameter: | Gang Tool: | 5 mm | |
| Turret: | 5 mm | ||
| Rotary Tool Max. Chucking Diameter: | Gang Tool: | 10 mm | |
| Turret: | 7 mm | ||
| Rotary Tool Max. Tapping Diameter: | Turret: | M5 | |
| Tool Spindle Speed: | Gang Tool: | 250 to 5000 rpm | |
| Turret: | 320 to 6380 rpm | ||
| Tool Spindle Speed Change Steps: | Steepless, S4-Digit | ||
| Back Spindle Max. Chuck Diameter: | 20 mm | ||
| Max. Front Separate Length of a Back Machined Workipece: | 125 mm | ||
| Back Machining Max. Drilling Diameter: | 8 mm | ||
| Back Machining Max. Tapping | M8 | ||
| Diameter: | |||
| Back Spindle Speed: | 150 to 7200 U/min | ||
| Back Spindle Speed Change Steps: | Steepless, S4-Digit | ||
| Number of Tools to be mounted | Gang Tool: | Cutting 5, Drilling: 3 (Total 8 tools) | |
| Turret: | 10 | ||
| Count of Turret Indexing: | 10 | ||
| Tool Holder: | Gang Tool: | Special M20 gang tool | |
| Turret: | Ø 10- Ø 10 mm (Positioning Pin Type) | ||
| Cutter Size: | Gang Tool: | 13 x 13 x 130 mm | |
| Turret: | 10 x 10 x 60 mm | ||
| Max. Diameter of Tool Mounted on | Gang Tool: Drill, End Mill: | Ø 10 mm | |
| Rotary Tool Holder: | |||
| Turret; Drill, End Mill: | Ø 7 mm | ||
| Tap: | M6 | ||
| Slitting Cutter: | |||
| Rapid Feedrate | X1 Axis: | 15 m/min | |
| X2, Y1, Z1, Z2, Z3 Axes: | 18 m/min | ||
| A2 Axis: | 200 rpm | ||
| Least Input Increment: | X1, X2, Y1 Axes: | 0,001 mm | |
| Z1, Z2, Z3 Axes: | 0,001 mm | ||
| A2 Axis: | 0,001 deg. Spindle Indexing: 0,001 ° | ||
| Center Height: | 1070 mm | ||
| Motors: | Spindle Motor: | 2,2 / 3,7 kW | |
| Back Spindle: | 0,75 / 1,5 kW | ||
| Gang Tool: | 0,4 kW | ||
| Turret: | 0,4 kW | ||
| Y1, A2 Axes Feed Motor: | 0,3 kW x 2 | ||
| X2, Y1, Z1, Z2, Z3 Axes: | 0,5 kW x 5 | ||
| Hydraulic Motor: | 0,4 kW | ||
| Coolant Motor: | 0,25 kW | ||
| Lubricant Motor: | 0,004 kW | ||
| Input Power Capacity: | 14 KVA | ||
| Required Floor Space: | 1100 x 2540 x 1700 mm | ||
| Weight: | 2500 kg |
